4 Channel HALL Synchronous DC Electric Linear Actuator Controller

Industrial Actuator Controllers 4 Channel Synchronous DC Control Module 12V~28V

The upgraded 4-Channel Hall Actuator Synchronization Controller offers accurate and adaptable management of your DC electric actuators. Compatible with a voltage range of 12V to 28V DC and capable of handling currents up to 25A, this controller supports the operation of 2, 3, or 4 actuators. It features both wired switch and wireless remote control options, ensuring flexible control for diverse applications. Additionally, the built-in overload protection feature safeguards your equipment from damage.

Features:

• Features built-in over-current protection to ensure safety and stability
• Operate 2, 3 or 4 actuators with synchronized extension/retraction speeds at all time.
• Supports 12V, 24V or 28V DC power supplies within a single unit
• Capable of controlling up to 4 actuators simulaneously or 2 actuators independently
• Universally compatible with both actuators within or without limit switches

Specifications:

• Model: LS-RSK-H4 (actuators sync box)
• Voltage: 12V~28V DC ( wide voltage in one box)
• Max. current: 25A ( 4 Channel in total)
• Frequency: 433.92MHz
• Remote range: 30 feet
• Control way: hard-wired switch & wireless remote control
• Certification: CE, FCC
• Remotes: 2 pieces, Programmable
• Remote design: Multiple styles for choice
• Function: Remote control; Synchronize; overloading safety protection

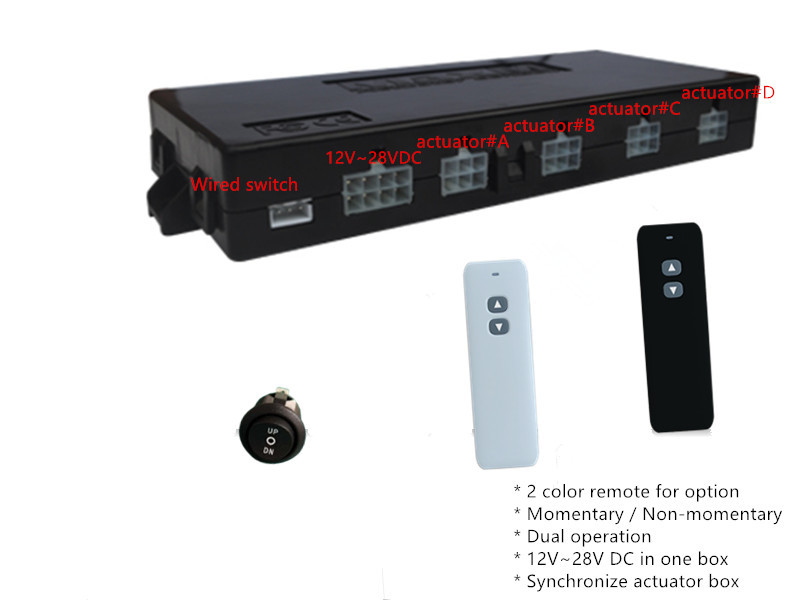

More photos:

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.

DC Electric Linear Actuator Controller

4 Channel Linear Actuator Controller

HALL Synchronous Linear Actuator Controller

4 Channel HALL Synchronous DC Electric Linear Actuator Controller Images
