Tubular Electric Actuators with Hall Sensor for Vents and Windows Open
This actuator comes with the option of either a 12V or 24V DC motor. The actuator is constructed using high-quality aluminum material which makes it strong and durable. It has been specifically designed for use in ventilation applications so as to help quickly remove smoke, heat, and toxic gases from buildings in case of a fire outbreak. Thanks to its compact inline size, this actuator is very easy to install. It fits perfectly into small spaces making it perfect for use in both residential and commercial buildings.
Features:
- 12V/24VDC options, offering flexibility depending on the system requirements.
- High-quality aluminum, ensuring both strength and durability for long-term performance.
- Tailored specifically for ventilation applications, helping to remove smoke, heat, and toxic gases during fire outbreaks.
- Compact Inline Size, simplifying installation in tight or confined spaces.
Technical Parameters:
| Technical Parameter | Value |
| Tubular actuator type | Electric |
| Limit Switches | Built-in |
| Customization | Available |
| Input Voltage | 12/24V DC |
| Stroke | 20~500mm |

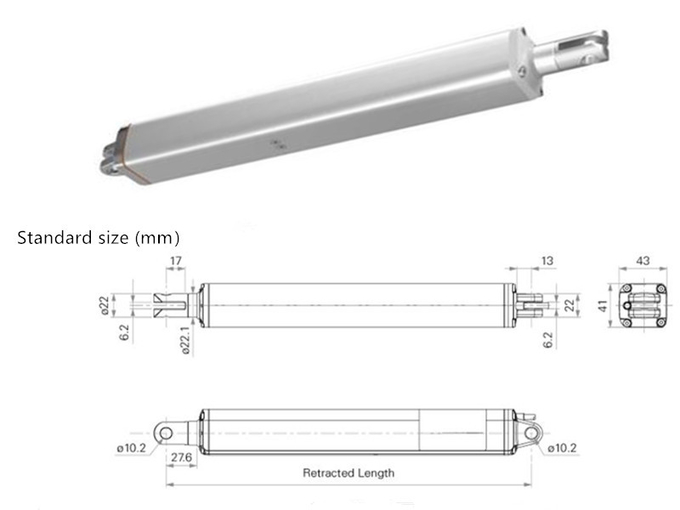

| Retracted Length | ≥ Stroke + 248mm |
| Max Thrust | 3000N (Push/Pull) |
| Options | Safety Nut |
| Application | Motorized Louver |
| Operating Temperature | -20˚C~+65˚C |
Applications:

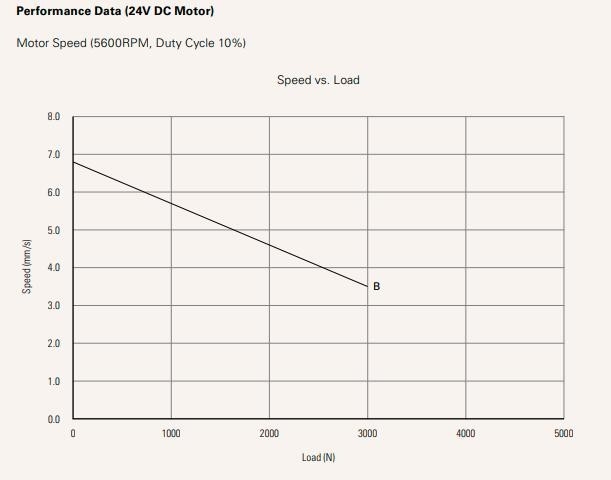

LS-PAT-3N is for motorized louver scenarios. With its hall sensor signal output, it can provide precision positioning, making it ideal for use in HVAC systems and air diffusers. It can operate at a maximum speed of 6.8mm/s at no load and 3.5mm/s at max. load, ensuring smooth and efficient movement.
