Waterproof Tubular Linear Actuators 12V 300lb 1Inch~30Inch Stroke
This compact tubular linear actuator is engineered for low-load industrial settings, offering a maximum load capacity of 330 pounds. Its space-saving design makes it ideal for applications with limited installation space. Rated up to IP69K, this actuator is built to withstand even the most demanding environmental conditions.
NOTE:
1. The products are tailored items, so the price and specification for reference only
2. Please provide us with the specifications of the actuators you need, we can give you some recommendations
Specifications:
| Working voltage | 12V / 24V |
| Max. thrust | 1500N /337lb |
| Max. speed | 5.2mm/s (full load) ; 12.4mm/s ( no load) |
| Stroke | 25mm~ 800mm |
| Retracted length | ≧Stroke+160mm |
| Diameter | 35mm ( Outer tube) |
| Limit switch | Built in |
| Output signals | Hall sensors |
| Applications | Louvred roof ; blinds ; skylight |
Load vs. Speed vs. Current ( 10% Duty cycle; 24V)
| Loading force | Current w/load | Current w/o load | Speed w/ load | Speed w/o load |
| 500N | 0.8A | 0.3A | 10mm/s | 12.4mm/s |
| 1000N | 1.6A | 0.3A | 6.2mm/s | 9.8mm/s |
| 1500N | 1.7A | 0.3A | 5.2mm/s | 7.8mm/s |
Features:
- Compact Design: Ideal for installations with limited space.
- Load Capacity: Supports a maximum load of 330 pounds.
- Industrial Use: Specifically designed for low-load industrial applications.

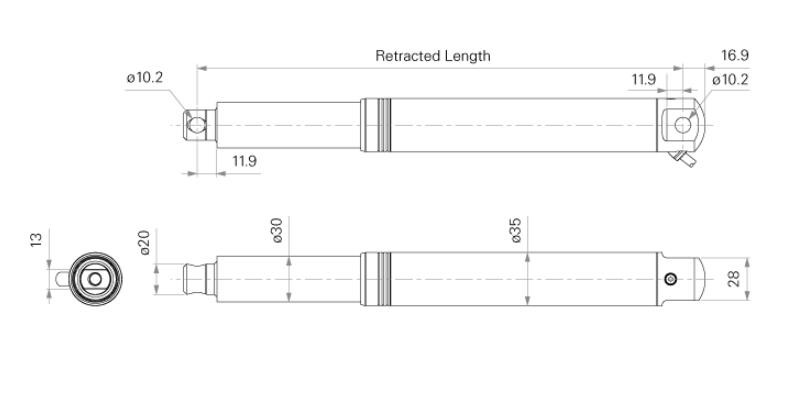

Standard size (mm)
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
|
|

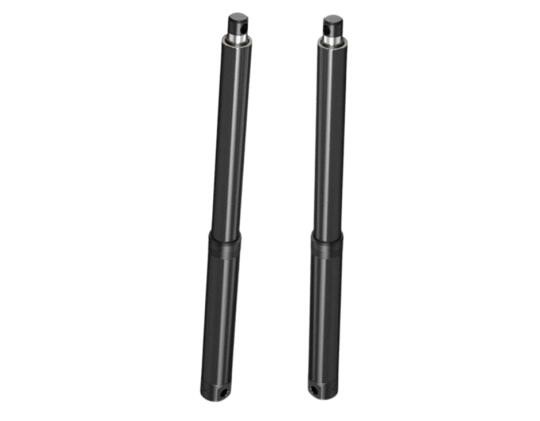

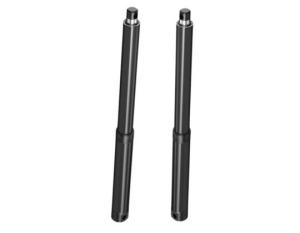

Waterproof Tubular Linear Actuators 12V 300lb 1Inch~30Inch Stroke Images
|
